How to display links in form?

Imagine you have a movie directory where you track various attributes such as title, year of production, IMDB link, ranking, etc. You want to include a link to the IMDB page for each movie. For example, "The Shawshank Redemption" would link to https://www.imdb.com/title/tt0111161.

Here are several methods to achieve this:

Method 1: Displaying a link in rich-text field​

  1. Create a rich text field: in fields/index.ts - with 1-row visibility for compactness.
{
    caption: 'Link to movie',
    name: 'c_rich_text_link',
    options: {
        text_min_visible_rows: 1,
    },
    textType: 'richtext',
    type: 'text',
},
{
    caption: 'IMDB id',
    name: 'c_imdb_id',
    type: 'text',
},
  1. Add to layout: place the field on the layout as read-only (mode="plain")
<section caption="Movie details">
    <column>
        <field name="c_rich_text_link" mode="plain" widthFactor="2" />
        ...
    </column>
</section>
  1. Generate the link: when saving the record, create the link using the IMDB id stored in c_imdb_id in actions/logic/index.ts
const url = `https://www.imdb.com/title/${c_imdb_id}`
entity.c_rich_text_link = `<a href="${url}">${url}</a>`

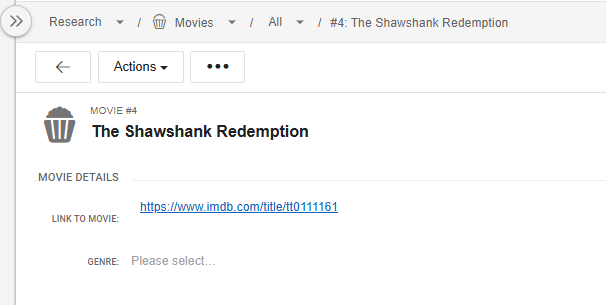

  1. Result: the link will appear as shown below: Link as rich text

Method 2: Using a linked field​

  1. Configure the IMDB ID field: instead of adding a new field, enhance the existing IMDB id field with 2 additional options:
{
    caption: 'IMDB id',
    name: 'c_imdb_id',
    options: {
        formatting_external_url_base: 'https://www.imdb.com/title/',
        formatting_icon: 'fas fa-up-right-from-square',
    },
    type: 'text',
},

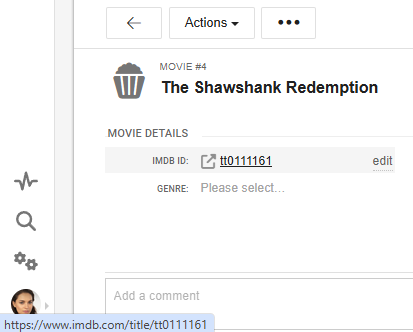

  1. Result: when the field is populated, it will render as a clickable link:

    Linked field
  1. Create a custom layout: in a new file custom_layout_imdb.tsx in the views/layouts folder:
/** @jsx entity */
import { entity } from '#typings';
export default (
	<layout>
		<div style="padding:10px;margin:10px 5px;border:2px solid #ccc;border-radius: 5px;">
			<div ngBindHtml="ui.movieLink"></div>
			<div>
				Rank: <b>9.3</b>/10
			</div>
		</div>
	</layout>
);
  1. Integrate into default layout: insert this to the default.tsx layout:
<section caption="Movie details">
    <column>
        <field name="c_imdb_id" />
        <custom-layout name="custom_layout_imdb" />
    </column>
</section>
  1. Initialize the link: in views/logic/index.ts - initialize movieLink variable:
export default {
	onReady,
} satisfies ViewLogic<typeof entity>;

function onReady() {
	const url = `https://www.imdb.com/title/${entity.c_imdb_id}`;
	ComindView.ui.movieLink = `IMDB: <a href="${url}">${url}</a>`;
}

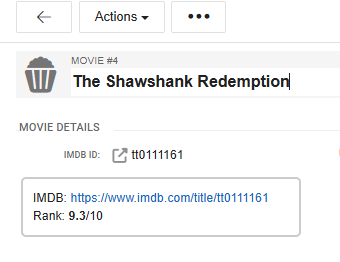

  1. Result: The custom layout will rendered as follows: Link custom layout
